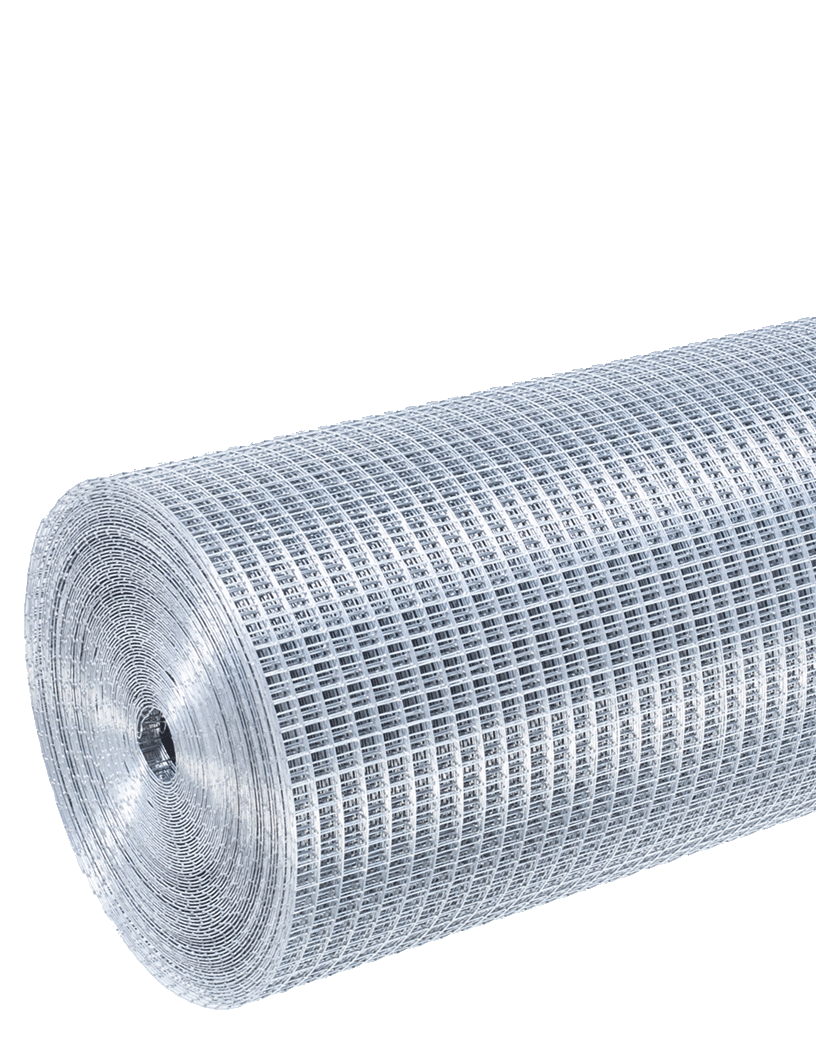

Welded Wire Mesh (WWM) is a grid structure made by welding metal wires together at their intersections. It’s typically made from low-carbon steel wire or stainless steel wire and is used widely in construction, industry, agriculture, and security applications.
The thickness of the wire is expressed in gauges,with lower gauge numbers indicating thicker wires.Common gauges range from 8gauge(thicker,heavier duty)to 23gauge(thinner,lighter applications).
The size of the openings between the wires,usually expressed in inches or millimeters.Common mesh sizes include 1/4 inch,1/2inch,1 inch,2 inches,etc.
Smaller mesh sizes provide greater security and are often used for filtering or containing small animals,while larger mesh sizes are used for fencing and reinforcement.

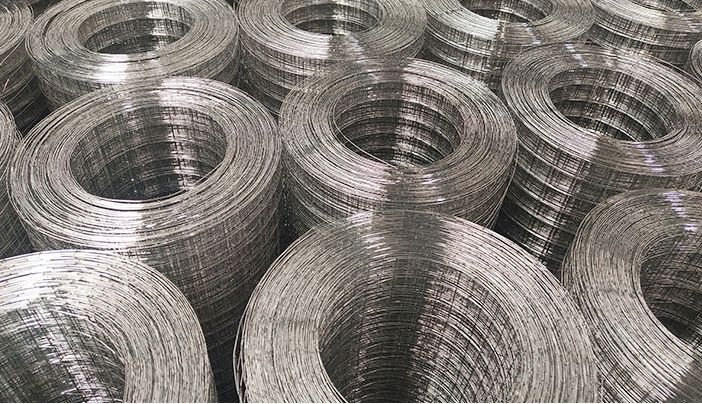

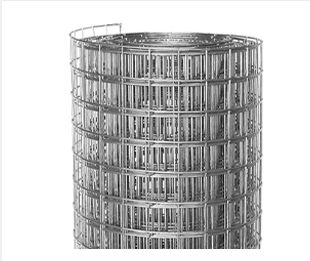

Welded wire mesh is often sold in rolls,with typical widths ranging from 2 to 8 feet and lengths from 25 to 100 feet or more.The welded mesh roll is usually packed with moistureproof paper and plastic film.
Welded Wire Mesh Wire Materials
Welded wire mesh is also called hardware cloth. it is welded with high-quality low-carbon steel wire andthen passivated and plasticaized by electro galvanized, hot dipped galvanized, PVC coated, etc.

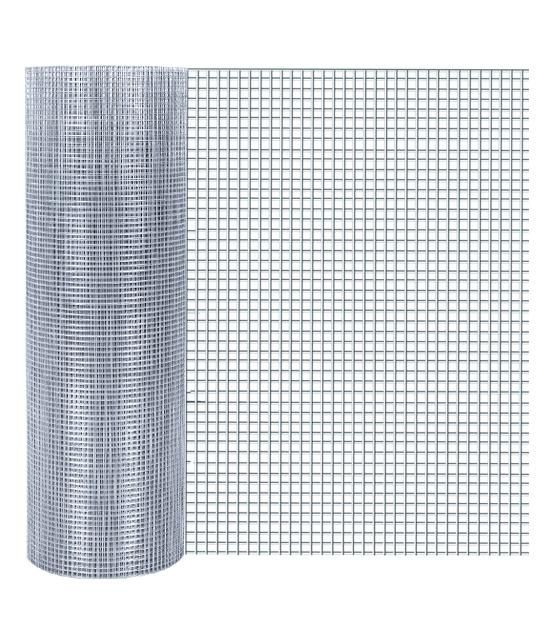

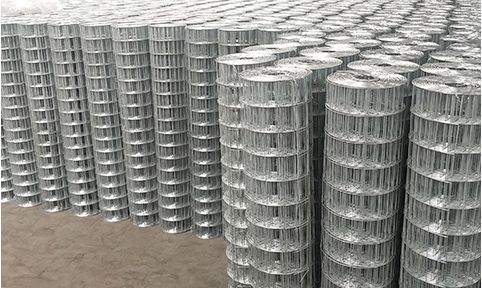

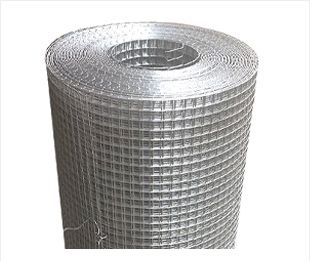

Galvanized Steel custom weld mesh

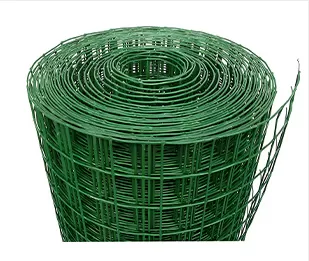

PVC-Coated custom weld mesh

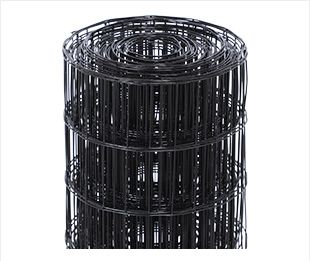

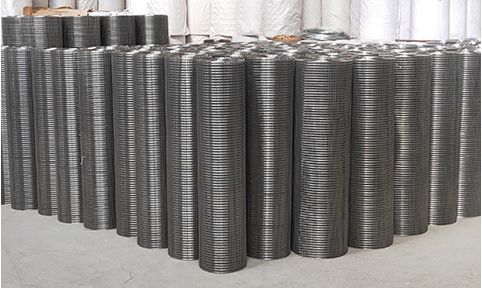

Black Welded Wire Mesh custom weld mesh
Stainless Steel custom weld mesh
Applications for Custom Weld Mesh
Welded wire mesh has smooth surface, uniform mesh, firm solder joints, good local machining performance. stability,good weather resistance and good corrosion resistance.
Our Customers Reviews
Adds an extra layer of protection and is available in various colors for added visibility or aesthetic integration with the surroundings.
Great product and shipping is very affordable.Also,amazing customer service.The team provided me with an estimate and all options.
Robert Peterson
Programmer
Sanxing Wire Mesh staff are always smart, helpful and friendly. This is a true five stalbusiness and product.Thanks
Pebz13
Programmer
We have been working with Sanxing Wire Mesh for over 8 years and my customers are always thrilled with their quality and delivery times. We liked this too and found the customer service to be A+.
Evelyn Martinez
Programmer
Specification List(Customization is also available)
Welded Wire Mesh is popular in most market, but types and specs varies for diferent markets. sanxing has supplied manyclients over the world, you can consult our wire experts for more detailed solutions
| Specification in British System | Specification in In meters | Packing Dia. (mm) | ||
| Width/length:3'x100' | Width/length:0.914mx30.48m | |||
| Width/length:4'x100' | Width/length:1.219mx30.48m | |||
| Mesh | Wire Dia.in BwG | Mesh | Wire Dia. | |
| 1"x2" | 14 | 25.4mmx50.8mm | 2.10mm | 390 |
| 1"x2" | 15 | 25.4mmx50.8mm | 1.82mm | 360 |
| 1"x2" | 16 | 25.4mmx50.8mm | 1.65mm | 320 |
| 1"x2" | 17 | 25.4mmx50.8mm | 1.47mm | 310 |
| 1"x1" | 14 | 25.4mmx25.4mm | 2.10mm | 400 |
| 1"x1" | 15 | 25.4mmx25.4mm | 1.82mm | 370 |
| 1"x1" | 16 | 25.4mmx25.4mm | 1.65mm | 330 |
| 1"x1" | 17 | 25.4mmx25.4mm | 1.47mm | 320 |
| 1"x1" | 18 | 25.4mmx25.4mm | 1.24mm | 280 |
| 1"x1" | 19 | 25.4mmx25.4mm | 1.06mm | 255 |
| 3/4"x3/4" | 16 | 19.05mmx19.05mm | 1.65mm | 350 |
| 3/4"x3/4" | 17 | 19.05mmx19.05mm | 1.47mm | 330 |
| 3/4"x3/4" | 18 | 19.05mmx19.05mm | 1.24mm | 290 |
| 3/4"x3/4" | 19 | 19.05mmx19.05mm | 1.06mm | 260 |
| 3/4"x3/4" | 20 | 19.05mmx19.05mm | 0.88mm | 240 |
| 1/2"x1" | 17 | 12.7mmx25.4mm | 1.47mm | 335 |
| 1/2"x1" | 18 | 12.7mmx25.4mm | 1.24mm | 300 |
| 1/2"x1" | 19 | 12.7mmx25.4mm | 1.06mm | 265 |
| 1/2"x1/2" | 18 | 12.7mmx12.7mm | 1.24mm | 300 |
| 1/2"x1/2" | 19 | 12.7mmx12.7mm | 1.06mm | 275 |
| 1/2"x1/2" | 20 | 12.7mmx12.7mm | 0.88mm | 250 |
| 1/2"x1/2" | 21 | 12.7mmx12.7mm | 0.81mm | 230 |
| 1/2"x1/2" | 22 | 12.7mmx12.7mm | 0.71mm | 215 |
| 1/4"x1/4" | 23 | 6.35mmx6.35mm | 0.63mm | 215 |
| 3/8"x3/8" | 21 | 9.35mmx9.35mm | 0.81mm | 250 |
| PVC coated welded wire mesh | ||||
| Gauge | Mesh | Mesh in mm | Note: | |
| 2.0MM/2.6MM | 4"X2" | 100mmX50mm | 1.gauge:bwg 12 to 24 | |
| 1.9MM/2.5MM | 3"x2" | 75mmX50mm | 2.mesh:1/4",3/8",5/8",1/2",3/4",1"to 6" | |
| 1.9MM/2.5MM | 2"x2" | 50mmX50mm | 3.width:2'to 7' | |
| 1.9MM/2.5MM | 2"x1" | 50mmX25mm | 4.length:10'to 300' | |
| 1.9MM/2.5MM | 3"X2" | 75mmX50mm | 5.packing:moister-proof paper or pvc film | |
| 0.8MM/1.1MM | 1/2"x1/2" | 12.5mmX12.5mm | 6.color:green,black or as special requirements | |
| 0.6MM/0.7MM | 3/4"x3/4" | 19.5mmX19.5mm | ||
| Mesh | Wire Dia. | Classification available:Hot-dipped galvanized after welding, Hot-dipped galvanized before welding Electro galvanized after welding, Electro galvanized before welding;Welded mesh,PVC-coated;Welded mesh made of stainless steel |
| 1/4"X1/4" | BWG23 | |
| 3/8"X3/8" | BWG19,20,21,22 | |
| 1/2"x1/2" | BWG16,17,18,19,20,21,22,23,24 | |
| 3/4"X3/4" | BWG16,17,18,19,20,21,22 | |
| 1"x1/2" | BWG16,17,18,19 | |
| 1"x1" | BWG14,15,16,17,18,19,20,21 | |
| 1"x2" | BWG14.15.16 | |
| 2"X2" | BWG14,15,16.18 |
Advantages of Welded Wire Mesh
High Strength & Structural Stability
Each intersection is welded, forming a rigid network.
Can support heavy loads in concrete reinforcement, floors, or fences without deforming.
Reduces cracking in concrete compared to traditional reinforcement bars placed separately.
Uniform Mesh & Precise Dimensions
Wires are evenly spaced and consistent in size.
Ensures predictable load distribution and easier engineering calculations.
Makes construction faster because no measurement adjustments are needed on-site.
Excellent Corrosion Resistance (if treated)
Galvanized or PVC-coated mesh resists rust, making it suitable for outdoor and humid environments.
Stainless steel variants last decades without maintenance.
Ease of Installation & Labor Savings
Comes in large sheets or rolls, reducing the need for cutting and tying individual wires.
Can be laid directly over concrete or fixed as fencing panels.
Saves time, labor costs, and construction errors.
Versatility Across Applications
Works for structural reinforcement, security fencing, animal enclosures, and even decorative projects.
Can be bent, cut, or welded to custom sizes without losing strength.
Cost Efficiency
Reduces material waste compared to loose bars or chains.
Fewer tools and less labor are required for installation.
Long lifespan (especially coated or stainless steel) lowers replacement costs.
Safety & Security Advantages
Strong, welded intersections prevent unauthorized access when used as fencing.
Ideal for industrial safety guards around machinery.
We offer a range of high-quality wire mesh products
No matter what kind of product you require, drawing on our extensive experience, we have the capabilities to manufacture it to the highest standards. In particular, our production line offers custom labeling and packaging options, streamlining your wholesale process and enhancing overall efficiency.
We will get back to you within 24 hours, or call us everyday, 09:00 AM-12:00PM
0086-318-5289812
Request A Quote
Complete control over products allows us to ensure our customers receive the best quality , prices and service. We take great pride in everything that we do in our factory.
Real Welded Wire Mesh Manufacturer
At Anping sanxing wire mesh factory, we offer a range of high-quality welded wire mesh products designed to meet the specific needs of our clients. Whether you're securing a farm, protecting a commercial property, or enhancing perimeter defenses, our welded wire mesh solutions provide the reliability and durability you need to ensure peace of mind.

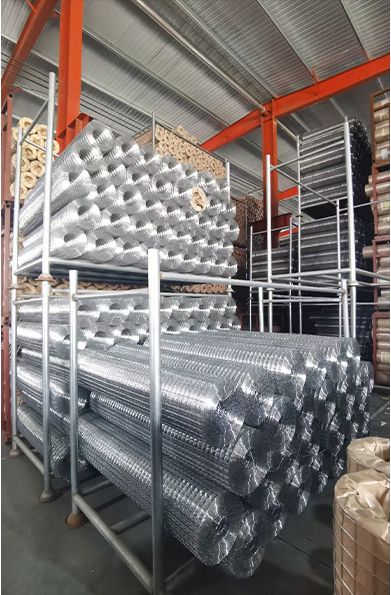

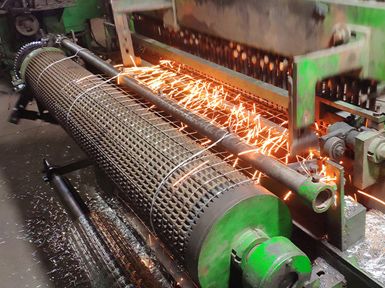

Welded Wire Mesh Manufacturing & Shipping
Estimated Time for Production & Delivery
At Sanxing, you can expect agile service on wire solutions and mass production. Following are few steps of production and dlivery for your reference. Please note the final duration depends on your requirements and quantities.
Custom Weld Mesh
Step 1
Step 1: Confirm specifications and requirements (6-12 hours)
As soon as we get your requirements. one of our specialists will get back to you with available welded wire mesh specification and solutions. You can get all welded wire mesh roll details within 12 hours and less
Step 2
Step 2: Production planand sample check (1-2 days)
In addition to check welded wire mesh specifications through conversation and documents,you can also reguest free sample or online production visit for verification. lt only takes 1-2 days.
Step 3
Step 3: Mass production (10-15 days)
The production of welded wire mesh will start right away when you place the order.With our full capacity production, normally all your wire products will be ready in 10-15 days.
Step 4

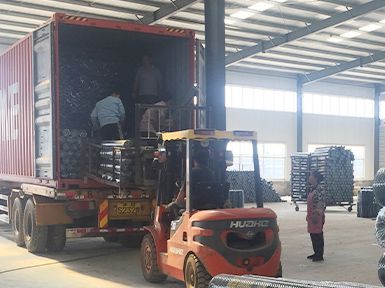

Step 4: Loading and shipment(12-10 days)
You can choose different welded wire mesh package according to your requirements.Such as waterproof paper plastic film, pallet and custom brand label for more convenient application.
Not just a wire mesh factory
For 30 years, we have provided high-quality on-demand manufacturing services to various fields around the world. You' ll only get the best products and services from us.

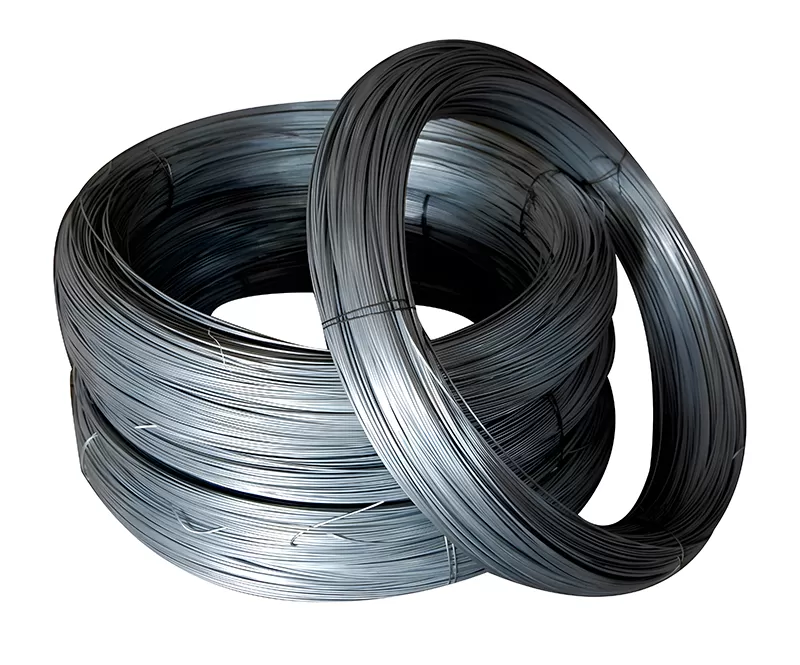

All Wire Manufacturing
With extended experience and production capacity,we can supply all your galvanized wire requirements.
Customized specifications
If you' re not sure what specification isbest for your requirement.just consult with our specialists. Our experts are ready to help you.
Wire Mesh Solutions
We have developed several wire meshproduction lines with steel wire. You cansource all wire mesh product at one stop.
Ease of Installation
Can be used in a variety of settings,from residential gardens to commercial properties and agricultural land.
sanxing Happy Clients
Since 1990, Sanxing has provided services to customers in over 70 countries and regions. This is our growing business parter ship and friend ship with our clients, lf you need any wire mesh solutions, please contact our experts.
